Material: (housing) stainless steel; (flap) plastic, black.
For approx.
28 kg / 24 h (10 °C ambient / 10 °C water temp.).
18 compact and transparent ice cream cones (approx.
20 g each) per cycle.
Stepless ice cream cone size regulation.
Air cooling.
Storage bin: 6.5 kg (325 ice cream cones).
Programmable, with touch control panel.
With disinfection cycle and easy interior access for cleaning / maintenance.
Can be controlled and monitored via smartphone with the ""MyICE"" app for constantly optimal production.
Acoustic and visual alarms, anticipatory error analysis possible.
USB port for software updates or HACCP data download, HACCP alarm report.
Incl.
hose for mains water connection (3/4 inch) + drain hose (Ø 20 mm).
Energy-saving, automatic condenser fan adjustment in low ambient temperature.
Suitable for ambient temperatures from 10 to 40 °C.
Suitable for water temperatures (fixed connection) from 5 to 35 °C.
Can be used with 1 to 5 bar water pressure.
Ready to plug in, with Schuko plug.
Connection: 230 V - 50 Hz - 1 Ph.
- 0.300 kW.
External dimensions: W 340 x D 480 x H 600 mm.
Weight (net/gross): 29 / 33 kg.
4 feet for leveling.
Optional high feet can be ordered: Ø 50 x H 100-120 mm.
Refrigerant: R290.
Energy consumption: 32.5 Kwh / 100 kg.
Water consumption: 2.3 L / h.
Heat output: 937 W.
Air volume: 200 m³ / h.

Material: (housing) stainless steel; (flap) plastic, black.
For approx.
27 kg / 24 h (10 °C ambient / 10 °C water temp.).
18 compact and transparent ice cream cones (approx.
20 g each) per cycle.
Stepless ice cream cone size regulation.
Water cooling.
Storage bin: 6.5 kg (325 ice cream cones).
Programmable, with touch control panel.
With disinfection cycle and easy interior access for cleaning / maintenance.
Can be controlled and monitored via smartphone with the ""MyICE"" app for constantly optimal production.
Acoustic and visual alarms, anticipatory error analysis possible.
USB port for software updates or HACCP data download, HACCP alarm report.
Incl.
hose for mains water connection (3/4 inch) + drain hose (Ø 20 mm).
Energy-saving, automatic condenser fan adjustment in low ambient temperature.
Suitable for ambient temperatures from 10 to 40 °C.
Suitable for water temperatures (fixed connection) from 5 to 35 °C.
Can be used with 1 to 5 bar water pressure.
Ready to plug in, with Schuko plug.
Connection: 230 V - 50 Hz - 1 Ph.
- 0.270 kW.
External dimensions: W 340 x D 480 x H 600 mm.
Weight (net/gross): 29 / 33 kg.
4 feet for leveling.
Optional high feet can be ordered: Ø 50 x H 100-120 mm.
Refrigerant: R290.
Energy consumption: 23 Kwh / 100 kg.
Water consumption: 40.1 L / h.
Heat output: 937 W.
Air volume: 200 m³ / h.

Material: (housing) stainless steel; (flap) plastic, black.
For approx.
38 kg / 24 h (10 °C ambient / 10 °C water temp.).
28 compact and transparent ice cream cones (approx.
20 g each) per cycle.
Stepless ice cream cone size regulation.
Air cooling.
Storage bin: 11.5 kg (575 ice cream cones).
Programmable, with touch control panel.
With disinfection cycle and easy interior access for cleaning / maintenance.
Can be controlled and monitored via smartphone with the ""MyICE"" app for constantly optimal production.
Acoustic and visual alarms, anticipatory error analysis possible.
USB port for software updates or HACCP data download, HACCP alarm report.
Incl.
hose for mains water connection (3/4 inch) + drain hose (Ø 20 mm).
Energy-saving, automatic condenser fan adjustment in low ambient temperature.
Suitable for ambient temperatures from 10 to 40 °C.
Suitable for water temperatures (fixed connection) from 5 to 35 °C.
Can be used with 1 to 5 bar water pressure.
Ready to plug in, with Schuko plug.
Connection: 230 V - 50 Hz - 1 Ph.
- 0.370 kW.
External dimensions: W 400 x D 540 x H 690 mm.
Weight (net/gross): 34 / 40 kg.
4 feet for leveling.
Optional high feet can be ordered: Ø 50 x H 100-120 mm.
Refrigerant: R290.
Energy consumption: 29 Kwh / 100 kg.
Water consumption: 3.2 L / h.
Heat output: 979 W.
Air volume: 185 m³ / h.

Material: (housing) stainless steel; (flap) plastic, black.
For approx.
36 kg / 24 h (10 °C ambient / 10 °C water temp.).
28 compact and transparent ice cream cones (approx.
20 g each) per pass.
Stepless ice cream cone size regulation.
Water cooling.
Storage bin: 11.5 kg (575 ice cream cones).
Programmable, with touch control panel.
With disinfection cycle and easy interior access for cleaning / maintenance.
Can be controlled and monitored via smartphone with the ""MyICE"" app for constantly optimal production.
Acoustic and visual alarms, anticipatory error analysis possible.
USB port for software updates or HACCP data download, HACCP alarm report.
Incl.
hose for mains water connection (3/4 inch) + drain hose (Ø 20 mm).
Energy-saving, automatic condenser fan adjustment in low ambient temperature.
Suitable for ambient temperatures from 10 to 40 °C.
Suitable for water temperatures (fixed connection) from 5 to 35 °C.
Can be used with 1 to 5 bar water pressure.
Ready to plug in, with Schuko plug.
Connection: 230 V - 50 Hz - 1 Ph.
- 0.290 kW.
External dimensions: W 400 x D 540 x H 690 mm.
Weight (net/gross): 34 / 40 kg.
4 feet for leveling.
Optional high feet can be ordered: Ø 50 x H 100-120 mm.
Refrigerant: R290.
Energy consumption: 20.9 Kwh / 100 kg.
Water consumption: 43.2 L / h.
Heat output: 979 W.
Air volume: 185 m³ / h.

Material: (housing) stainless steel; (flap) plastic, black.
For approx.
54 kg / 24 h (10 °C ambient / 10 °C water temp.).
36 compact and transparent ice cream cones (approx.
20 g each) per cycle.
Stepless ice cream cone size regulation.
Air cooling.
Storage tank: 22 kg (1100 ice cream cones).
Programmable, with touch control panel.
With disinfection cycle and easy interior access for cleaning / maintenance.
Can be controlled and monitored via smartphone with the ""MyICE"" app for constantly optimal production.
Acoustic and visual alarms, anticipatory error analysis possible.
USB port for software updates or HACCP data download, HACCP alarm report.
Incl.
hose for mains water connection (3/4 inch) + drain hose (Ø 20 mm).
Energy-saving, automatic condenser fan adjustment in low ambient temperature.
Suitable for ambient temperatures from 10 to 40 °C.
Suitable for water temperatures (fixed connection) from 5 to 35 °C.
Can be used with 1 to 5 bar water pressure.
Ready to plug in, with Schuko plug.
Connection: 230 V - 50 Hz - 1 Ph.
- 0.520 kW.
External dimensions: W 500 x D 580 x H 800 mm.
Weight (net/gross): 42 / 50 kg.
4 feet for leveling.
Optional high feet can be ordered: Ø 50 x H 100-120 mm.
Refrigerant: R290.
Energy consumption: 23.3 Kwh / 100 kg.
Water consumption: 4.5 L / h.
Heat output: 1.707 kW.
Air volume: 310 m³ / h.

Material: (housing) stainless steel; (flap) plastic, black.
For approx.
54 kg / 24 h (10 °C ambient / 10 °C water temp.).
36 compact and transparent ice cream cones (approx.
20 g each) per cycle.
Stepless ice cream cone size regulation.
Air cooling.
Storage tank: 22 kg (1100 ice cream cones).
Programmable, with touch control panel.
With disinfection cycle and easy interior access for cleaning / maintenance.
Can be controlled and monitored via smartphone with the ""MyICE"" app for constantly optimal production.
Acoustic and visual alarms, anticipatory error analysis possible.
USB port for software updates or HACCP data download, HACCP alarm report.
Incl.
hose for mains water connection (3/4 inch) + drain hose (Ø 20 mm).
Energy-saving, automatic condenser fan adjustment in low ambient temperature.
Suitable for ambient temperatures from 10 to 40 °C.
Suitable for water temperatures (fixed connection) from 5 to 35 °C.
Can be used with 1 to 5 bar water pressure.
Ready to plug in, with Schuko plug.
Connection: 230 V - 50 Hz - 1 Ph.
- 0.440 kW.
External dimensions: W 500 x D 580 x H 800 mm.
Weight (net/gross): 42 / 50 kg.
4 feet for leveling.
Optional high feet can be ordered: Ø 50 x H 100-120 mm.
Refrigerant: R290.
Energy consumption: 20.6 Kwh / 100 kg.
Water consumption: 43.4 L / h.
Heat output: 1.707 kW.
Air volume: 310 m³ / h.

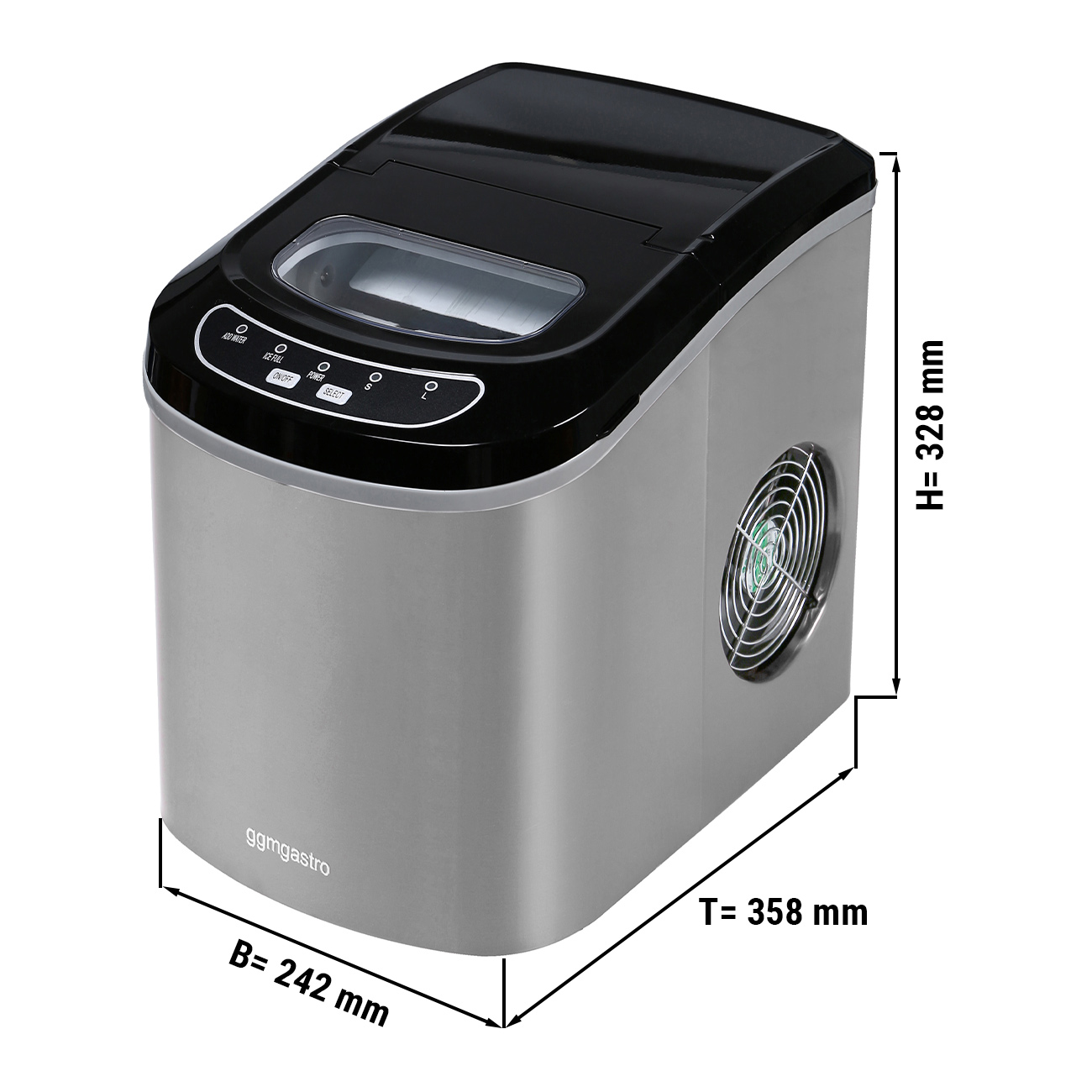

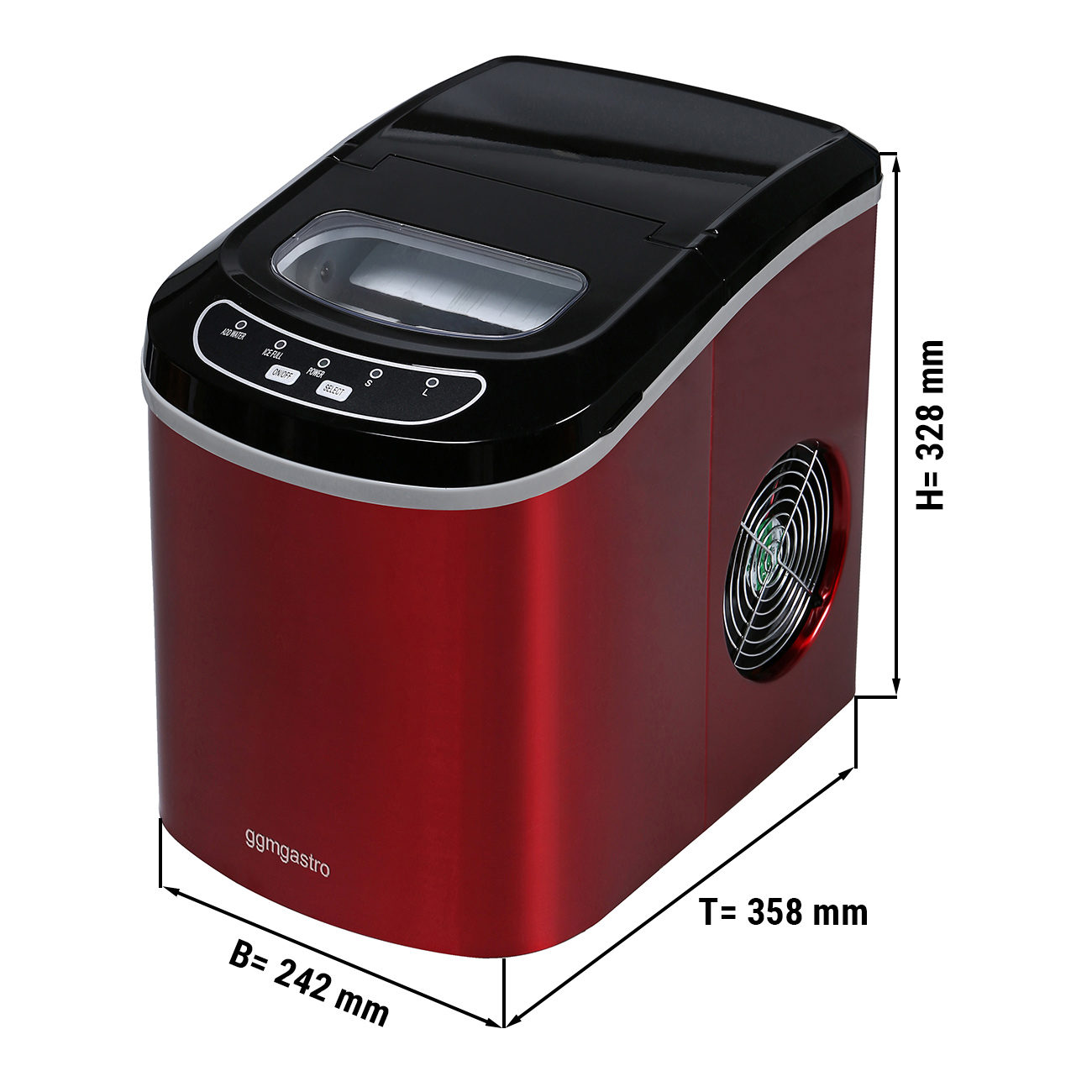

Material: (housing) stainless steel; (lid) plastic, grey.
With side openings for safe transport.
On/off switch on the back of the device.
3 hollow ice cone sizes can be selected via the display: approx.
Ø 23 x H 29 mm, approx.
Ø 25 x H 32 mm and approx.
Ø 27 x H 33 mm.
For approx.
15 kg / 24 h.
Storage tank: 1.2 kg.
Water tank: approx.
2 liters.
Air cooling.
Suitable for ambient temperatures from 10 to 40 °C.
Connection: 230 V - 50 Hz - 0.110 kW.
External dimensions: W 356 x D 398 x H 430 mm.
Weight: 19kg.
Refrigerant: R600a.

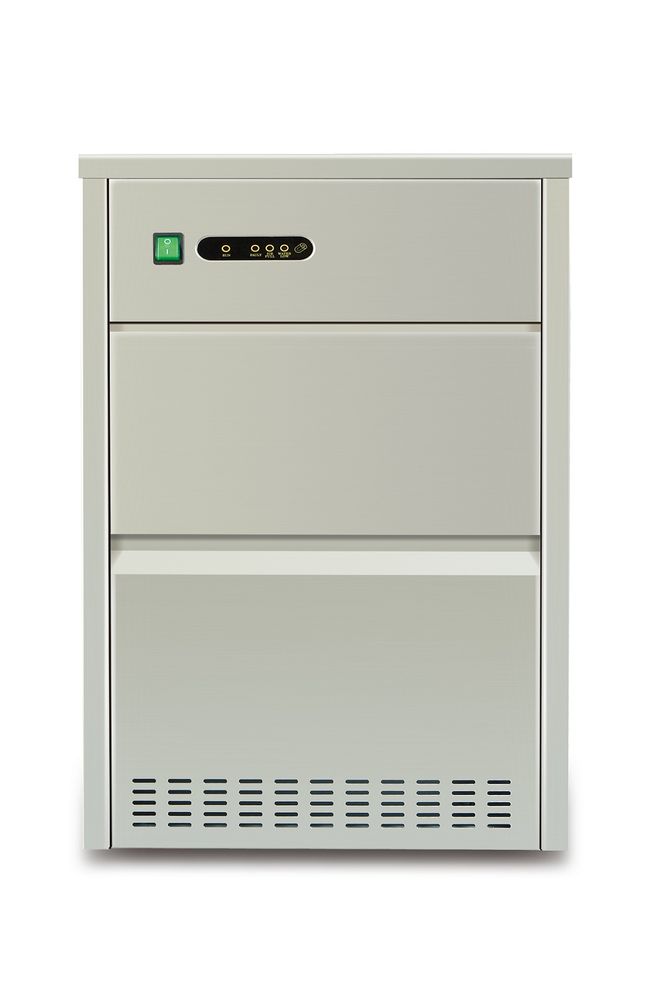

Material: (housing and flap) stainless steel.
Ice cone size: approx.
Ø 28 x H 40 mm.
For approx.
40 - 50 kg / 24 h.
Circulation system.
Storage tank: 10 kg.
Incl.
hose for mains water connection (3/4 inch) and drain hose (1/2 inch).
Air cooling.
With a 5-year guarantee on the tub motor.
Suitable for ambient temperatures from 10 to 40 °C.
Can be used at 1 to 3 bar water pressure.
An upstream water softener is recommended for water hardness from 7°.
Connection: 230 V - 50 Hz - 0.260 kW.
External dimensions: W 496 x D 610 x H 831 mm.
Weight: 55kg.
Refrigerant: R290.

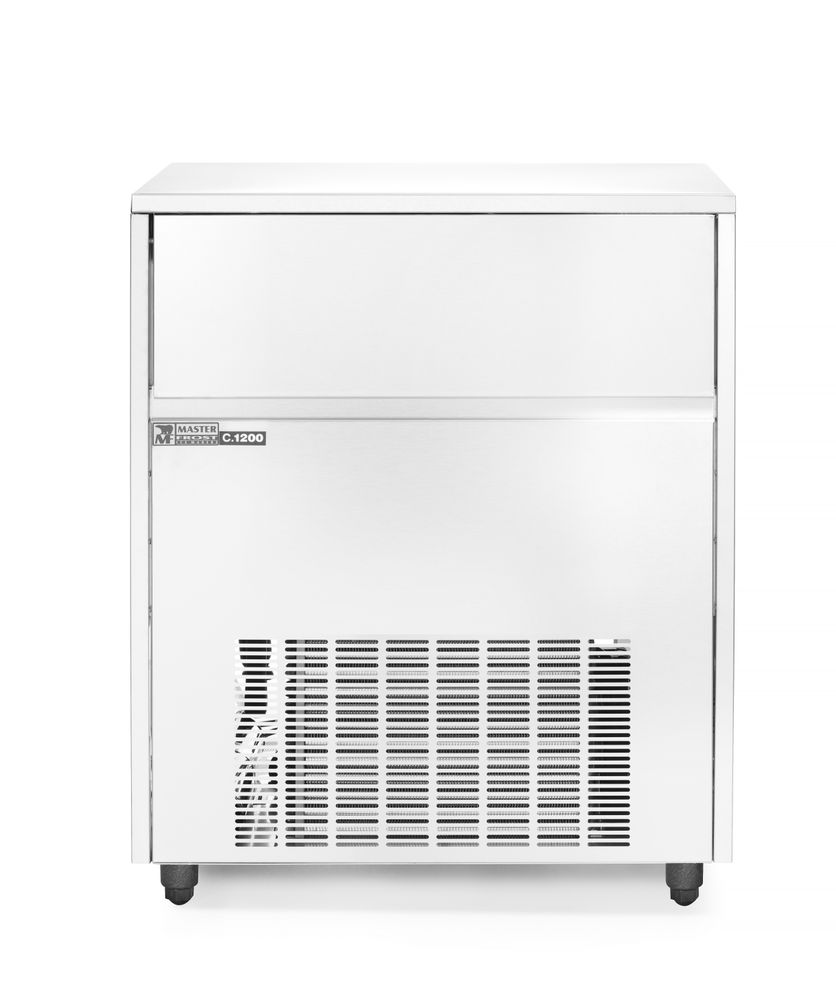

Material: (housing and flap) stainless steel.
Ice cone size: approx.
Ø 28 x H 40 mm.
For approx.
26 kg / 24 h.
Circulation system.
Storage tank: 6 kg.
Incl.
hose for mains water connection (3/4 inch) and drain hose (1/2 inch).
Air cooling.
With a 5-year guarantee on the tub motor.
Suitable for ambient temperatures from 10 to 40 °C.
Can be used at 1 to 3 bar water pressure.
An upstream water softener is recommended for water hardness from 7°.
Connection: 230 V - 50 Hz - 0.160 kW.
External dimensions: W 420 x D 528 x H 655 mm.
Weight: 36.5kg.
Refrigerant: R600a.
