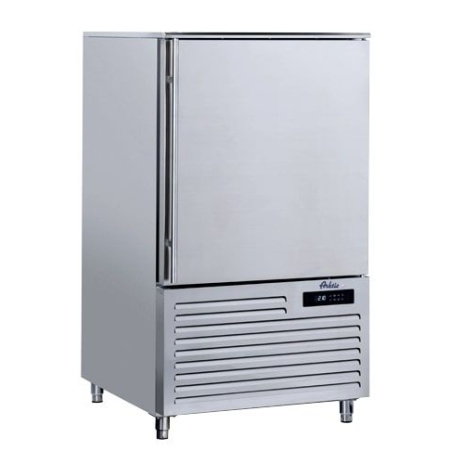

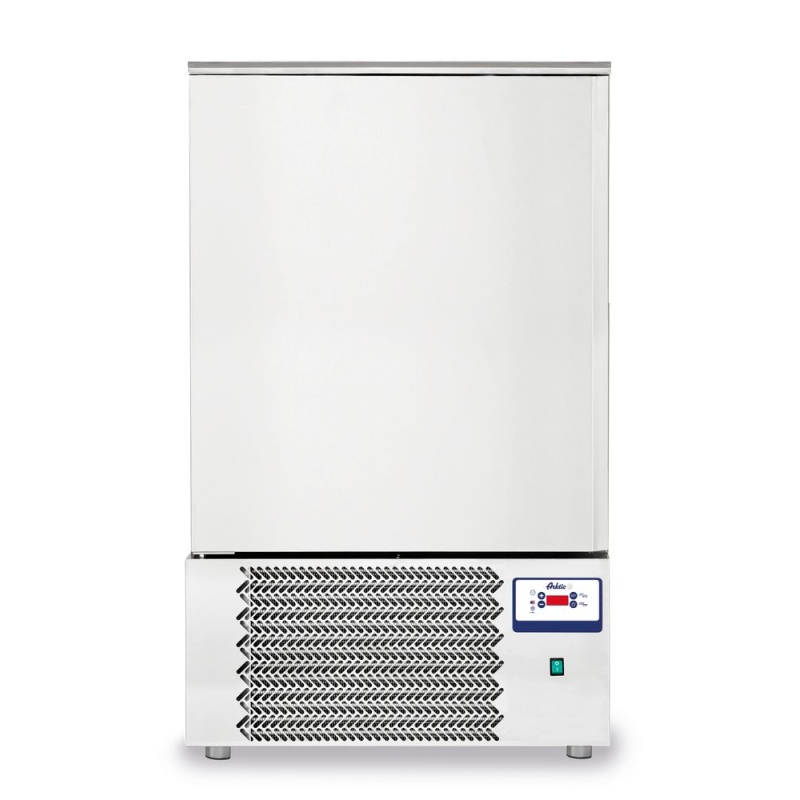

Blast chiller 7 x GN 1/1, Arktic, GN 1/1, 230V/1180W, 790x900x(H)1377mm

SKU: 232194
Brand: Arktic
Qty: 9
Delivery time: 5-10 workdays
Price: 5275,10 €
3340,00 €
Qty.: - +
   - or -

Chamber capacity: 7 x GN 1/1 or 7 x 600x400 mm trays.

Inside dimensions of the chamber: 640x452x(H)730 mm.

7 sets of rails, 70 mm apart.

Output at chilling to +3° C: 23 kg.

Output at freezing to -18°C: 18 kg.

Weight: 116 kg.

Product dimensions 740 x 750 x 1290 mm
Power 1490W
Voltage, V 220-240
Material stainless steel
Net weight, kg 107.842
Main material metal
Temperature range -18...3
Similar products

Material: (housing and interior) stainless steel.
Suitable for 10 x 1/1 GN or W 600 x D 400 mm trays.
4 cycles pre-programmed.
Core temperature probe.
Rapid chilling: 40 kg from +70 to +3 °C in 90 min., Shock freezing: 28 kg from +70 to -18 °C in 240 min..
Digital temperature control (DIXELL).
Insulation: 70 mm.
Static cooling with circulating air fan.
Temp.
-18 / -22 °C.
Connection: 230 V - 1 Ph.
- 1,300 kW.
Content: 368 liters.
Internal dimensions: W 660 x D 640 x H 870 mm.
External dimensions: W 800 x D 815 x H 1645 mm.
4 adjustable feet.
Weight: 190kg.
Refrigerant: R290.
Sound level: 60DBA.

SKU: 323-4510 ,   Delivery time: 3-5 weeks
4666,88 €

Chamber capacity: 3 x GN 1/1 or 3 x 600x400 mm trays.

Inside dimensions of the chamber: 610x410x280 mm.

3 sets of rails, 70 mm apart.

Output at chilling to +3° C: 14 kg.

Output at freezing to -18°C: 11 kg.

Weight: 50 kg.

SKU: 232163 ,   Qty: Out of stock ,   Delivery time: ask for an offer
3057,70 €

Chamber capacity: 5 x GN 1/1 or 5 x 600x400 mm trays.

Inside dimensions of the chamber: 640x400x(H)360 mm.

5 sets of rails, 65 mm apart.

Output at chilling to +3° C: 15 kg.

Output at freezing to -18°C: 10 kg.

Weight: 76 kg.

SKU: 232170 ,   Qty: 26 ,   Delivery time: 5-10 workdays
2150,00 € (39%)
3550,50 €

Housing and chamber are made of AISI 304 stainless steel.

The chamber measures 340x365x(H)270 mm and fits 3x GN2/3 containers, the guides are placed 68 mm apart.

With digital display.
Thermostat measures the chamber temperature but can also measure core temperatures with the included probe.

Forced air cooling, with manual defrosting.

Automatic hold function - at the end of the cycle the device maintains the reached temperature.

Evaporator protected against corrosion.

Cooling efficiency: 7 kg (+90°C/+3°C)/cycle.

Freezing efficiency: 5 kg (+90°C/-18°C)/cycle.

Insulation made of 60 mm thick foamed cyclopentane.

With visual and audible door open alarm, chilling stops when the door is open.

Adjustable stainless steel feet.

Climate class: 4, works in ambient temperatures up to 38°C.

Refrigerant: R290.

Net weight: 44 kg.

SKU: 237731 ,   Qty: 10 ,   Delivery time: 5-10 workdays
1550,00 € (41%)
2608,50 €

Chamber capacity: 10 x GN 1/1 or 10 x 600x400 mm trays.

Inside dimensions of the chamber: 640x452x(H)870 mm .10 sets of rails, 75 mm apart.

Output at chilling to +3° C: 25 kg.

Output at freezing to -18°C: 20 kg.

Weight:120kg.

SKU: 232187 ,   Qty: 29 ,   Delivery time: 5-10 workdays
3810,00 € (33%)
5666,40 €
